Specification
Profile | Boxed | Rose |
---|---|---|
Floor Width | 150 mm | 125 mm |
Profile Height | 150 mm | 175 mm |
Max. Length | 6 m | 6 m |
Thickness | 0.45 - 0.60 mm | 0.45 - 0.60 mm |
![](/files/products/accessories/gutter/gutter-profile-box.webp)
![](/assets/images/w/gutter-profile-tabriz-t46ama28nqpre2x.webp)
Colors
-
Light Ivory RAL 1015 -
Mellon Yellow RAL 1028 -
Pure Orange RAL 2004 -
Flame Red RAL 3000 -
Traffic Red RAL 3020 -
Blue Sky RAL 5015 -
Traffic Green RAL 6024 -
Cooper Brown RAL 8004 -
Chocolate Brwon RAL 8017 -
Traffic White RAL 9016 -
Galvanized Steel

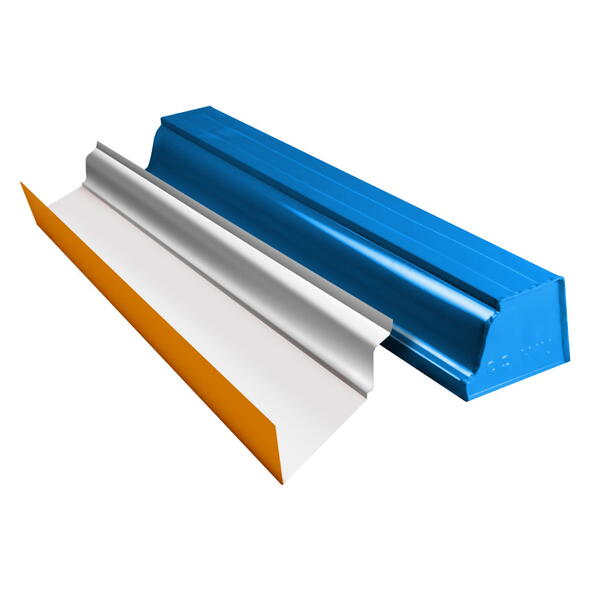

Rose gutter design has a decorated look and eliminates the need for extra decorative parts. Straps are hidden in this gutter and are attached internally so they aren’t visible from outside. Rose gutters have special caps which eliminate the need for sheet installation on the site which is a job often done at heights.
Advantages
- This product has an elegant look and eliminates the need for extra decorative parts.
- Straps are hidden in this gutter and are attached internally so they aren’t visible from outside.
- Gutters have special caps which eliminate the need for sheet installation on the site which is a job often done at heights.
Call for advice
+98(914)4333705Installation instructions
- First use two locking pliers to fix the gutter in place temporarily but precisely.
- Use a screw to fix each strap in place and put half a meter space between them.
- Install caps and bottoms and fill the edges with adhesive sealant.
