Fooladgharb Wall Sandwich Panel is produced and supplied for all kinds of special uses. Our wall sandwich panel is produced from colored, galvanized and aluzinc sheets in a completely customized way in terms of color and thickness. Wall Sandwich Panel is one of the new products of Fooladgharb, due to its unique functional features, it has gained great popularity in industries and factories.
Fooladgharb wall sandwich panel is produced according to the world's standards. If you are looking for a high quality wall sandwich panel price, contact the technical and sales experts of Fooladgharb, place an order and receive your product on time, at the desired location.
Specifications
Wall Sandwich Panel
| Effective width | 1120 mm |
|---|---|
| Max. Length | 13 m |
| Insulation Thickness | 5, 8, 10 cm |
| Thickness | 0.35 - 0.80 mm |
| Insulation density | 40 kg/m3 |
| Features | Fireproof |
Wall Sandwich Panel Hidden Screw
| Effective width | 1000 mm |
|---|---|
| Max. Length | 13 m |
| Insulation Thickness | 2, 5, 6, 8 cm |
| Sheet Thickness | 0.35 - 0.80 mm |
| Insulation density | 40 kg/m3 |
| Features | Fireproof - Hidden Screw |

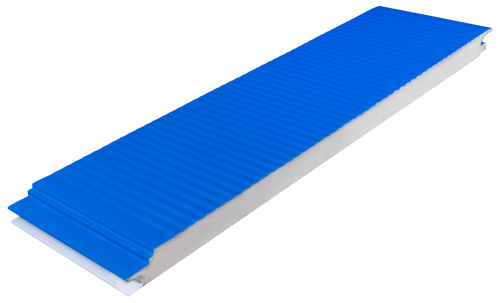

Wall Sandwich Panel V8
| Effective width | 1000 mm |
|---|---|
| Max. Length | 13 m |
| Insulation Thickness | 2, 5, 6 cm |
| Sheet Thickness | 0.35 - 0.80 mm |
| Insulation density | 40 kg/m3 |
| Features | Fireproof - Hidden Screw |
What's Wall Sandwich Panel?
Wall sandwich panels are a versatile and efficient construction material widely used for building walls in various types of structures. These panels consist of two outer layers made of durable materials, such as steel or aluminum, and an insulating core made from materials like polyurethane (PUR), polyisocyanurate (PIR), or mineral wool. The combination of these layers provides excellent thermal and sound insulation, structural strength, and resistance to environmental factors. Wall sandwich panels are favored in commercial, industrial, and residential construction for their ability to enhance energy efficiency, reduce construction time due to their prefabricated nature, and offer long-term durability with minimal maintenance.
Wall Sandwich Panel Features
-
Thermal Insulation -
Durability -
Waterproof -
Fire resistant -
Sound insulation -
Quick and easy installation
Guide to choosing Wall panels
The application of Wall panel is diverse according to its special characteristics. Sandwich panel should be chosen according to the application and type of need, weather conditions, environment and budget. PU sandwich panel is a suitable choice for chemical industries, food factories and agriculture. But due to the higher price of polyurethane sandwich panel, using it for the roof of livestock and poultry sheds is not an economic option. PU sandwich panel has a higher insulation coefficient, which is more economical in the long run by saving energy. The middle insulation thickness of the polyurethane sandwich panel should be determined based on the amount of insulation required. The use of high thickness cannot achieve the desired result.
Wall Sandwich Panel's Price
The price of Wall Panel depends on various factors and should be calculated by the sales expert based on the requested specifications. These factors are:
- Profile type: Hidden Screw, V8, Cold Storage profile
- Sheet material: the top and bottom sheets can be galvanized, aluzinc, or aluminum.
- The thickness of the sheets: the weight and price of the sandwich panel increases with the increase of the thickness of the sheet. Often, the bottom sheet is thinner than the top sheet.
The color of the sheets: the bottom sheet, which is actually the inner ceiling, is often chosen white, but blue, red, and orange colors are more useful for the roof. - Insulation thickness: The insulation thickness will increase the insulation properties against cold and heat and has a great impact on the price.
- Insulation density: The insulation density is selected based on the type of use.
- The width of the sandwich panel: the width of the sandwich panel is fixed depending on the type of profile, but under certain conditions, it is possible to produce it with a smaller width.
Also, the size of the produced wall sandwich panel will be more than the size of the structure due to the overlap of the panels.
Wall Sandwich Panel Inquiry
Call for Advice

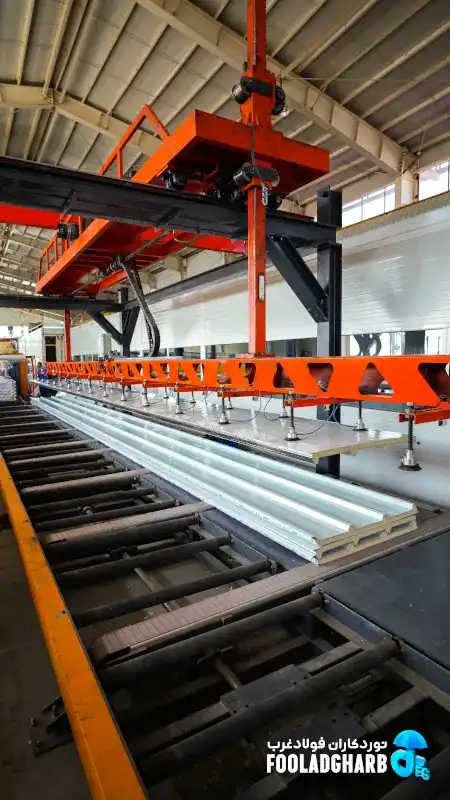

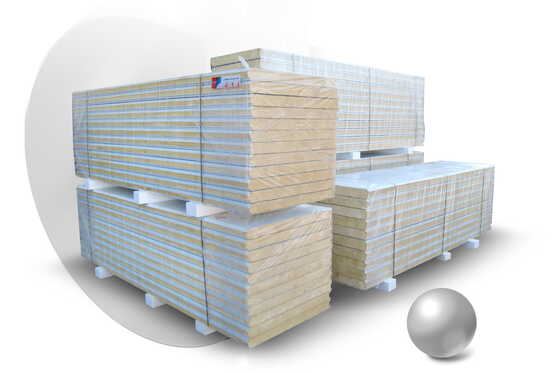

Quality control, Packing and loading
Fooladgharb Company has always put customer satisfaction as its main policy. Therefore, we raise the quality of our products by launching new production lines and employing educated technical and specialist people. We are careful in the production, quality control of the produced sandwich panel and correct packaging and shipping so that the product that reaches you is in accordance with your request.
The process of purchasing sandwich panels from the initial order to its delivery is a time-consuming process, which has been reduced by using production and sales management systems and trained personnel. Please call +98(914)4333705 for more information, Wall Sandwich Panel prices, or other technical questions.
