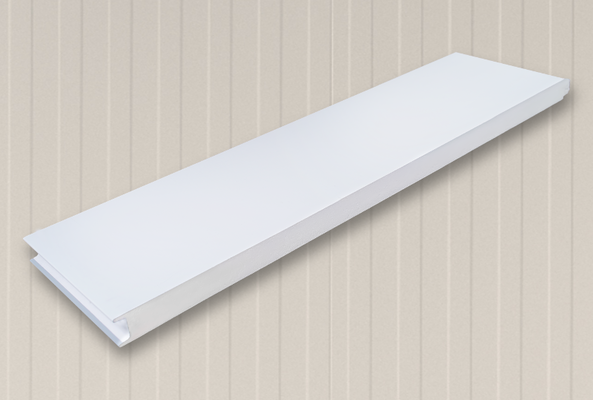

Clean Room Panel

New product with fireproof insulation

Wall panel and Hidden screw

Inquery

Fouladhgharb clean room sandwich panel is designed for special uses. Fouladgharb clean room sandwich panel with polyurethane insulation is produced from colored, galvanized and aluzinc sheets in a completely customized way in terms of color and thickness. Sandwich panel clean room or clean room is used in industries and factories such as the production of medicine and medicinal substances and laboratories that require controlled environments. Fouladgharb clean room sandwich panel is produced according to the standard and hygiene principles. The main feature of this product is its completely smooth and unpatterned surface, which makes it easy to wash and maintain.

If you are looking for a high quality clean room sandwich panel price, contact the sales experts of Fouladgharb, place an order.

Clean Room Sandwich Panels

Clean Room Wall Panel

Width 1080 mm
Useful width 1000 mm
Lenght 2 - 13 m
Insulation thickness 5 - 6 cm
Insulation density 40 kg/m3
Sheet thickness 0.35 - 0.80 mm
Sheet type Galvanized, Colored, Aluzinc, Steel sheets
Production type Continius
Features Hidden screw - Fireproof

Hidden Screw PU Wall Panel

Width 1080 mm
Useful width 1000 mm
Lenght 2 - 13 m
Insulation thickness 5 - 6 cm
Insulation density 40 kg/m3
Sheet thickness 0.35 - 0.80 mm
Sheet type Galvanized, Colored, Aluzinc, Steel sheets
Production type Continius
Features Hidden screw - Fireproof

What's Clean Room Panel?

Clean room sandwich panel is a special type of sandwich panel that is used to build clean rooms. Clean rooms are controlled environments in which the amount of air pollutants such as dust, germs, viruses and other particles is minimized. This is achieved by using air filtration systems and other pollution control methods.

Clean Room Panel Inquiry

Clean room Sandwich Panel Buying guide

The application of clean room sandwich panel is limited due to its special characteristics. The cleanroom panel should be selected according to the type of use and environmental conditions. Sandwich panel with PU insulation is a suitable choice for chemical industries, food factories and agriculture. But due to the higher price of polyurethane sandwich panel, it is not cost-effective to use it for the roof of other sheds. Concealed screw cleanroom panels are more hygienic due to the fact that they do not require drilling on the outer surface. The middle insulation thickness of the polyurethane panel should be chosen based on the amount of insulation required, and the use of high thickness cannot necessarily achieve the desired result.

Factors affecting the price of clean room sandwich panels

The price of Clean Room Panels changes daily due to fluctuations in the price of steel sheet and raw materials. Apart from these cases, the price of each square meter of sandwich panel depends on other factors, and it is not possible to provide an approximate price without performing calculations. The price should be calculated by the sales expert based on the requested specifications. These factors are:

  • Profile type: ceiling, wall, cold room, clean room
  • Sheet material: The top and bottom sheets can be galvanized, aluzinc, or aluminum. To reduce the price of sandwich panel, you can also choose waterproof foil paper.
    The thickness of the sheets: the weight and price of the sandwich panel increases with the increase of the thickness of the sheet. Often, the bottom sheet is thinner than the top sheet.
  • The color of the sheets: the bottom sheet, which is actually the inner roof, is often chosen white, but blue, red and orange colors are more useful for the roof.
  • Insulation thickness: The insulation thickness will increase the insulation properties against cold and heat and has a great impact on the price.
  • Insulation density: The insulation density is selected based on the type of use.The width of the sandwich panel: the width of the sandwich panel is fixed depending on the type of profile, but under certain conditions, it is possible to produce it with a smaller width.

Also, the size of the sandwich panel produced will be more than the size of the structure due to the overlap of the panels.

Call for Advice

+98(914)4333705

Clean Room Panel Inquiry

Quotation Inquiry

Please calculate 1 plus 1.

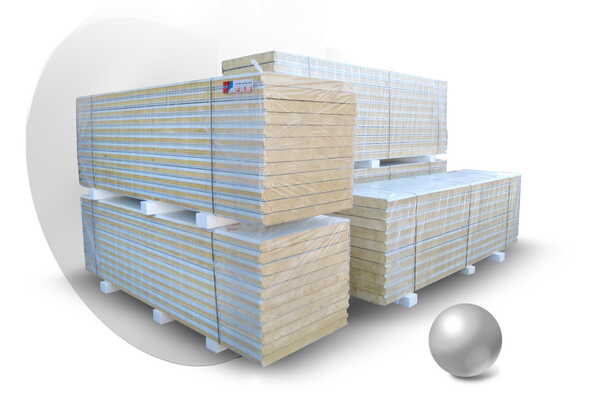

What is a Sandwich Panel?

Sandwich panel for roof and wall covering with easy installation and insulation is the best option for commercial and residential buildings. sandwich panel of three main layers; It has two metal sheets and a thick layer of insulation, which has high strength while being light. The middle layer of the sandwich panel can be chosen from polystyrene, polyurethane foam, glass wool and other insulating materials. Polyurethane sandwich panels are currently more popular, but the price of polystyrene sandwich panels makes them an affordable option as a great alternative to attic roofing sheets. The sheet in the sandwich panel includes colored, galvanized, aluzinc, galvanic, aluminum, and foiled paper sheets.

Sandwich panel is produced for various applications including ceiling, wall and cold storage. The difference between ceiling and wall sandwich panels is in the profile of the top sheet, which has steps that allow it to bear additional load. But in the wall sandwich panel, profile sheet is used on both sides. The useful width of the ceiling sandwich panel is less than the useful width of the wall sandwich panel. The panel length limit is up to 15 meters. The thickness of the insulation can be chosen from 4 to 25 cm depending on the application, such as cold storage, poultry house, sports hall, warehouse and shed.
